About

Description

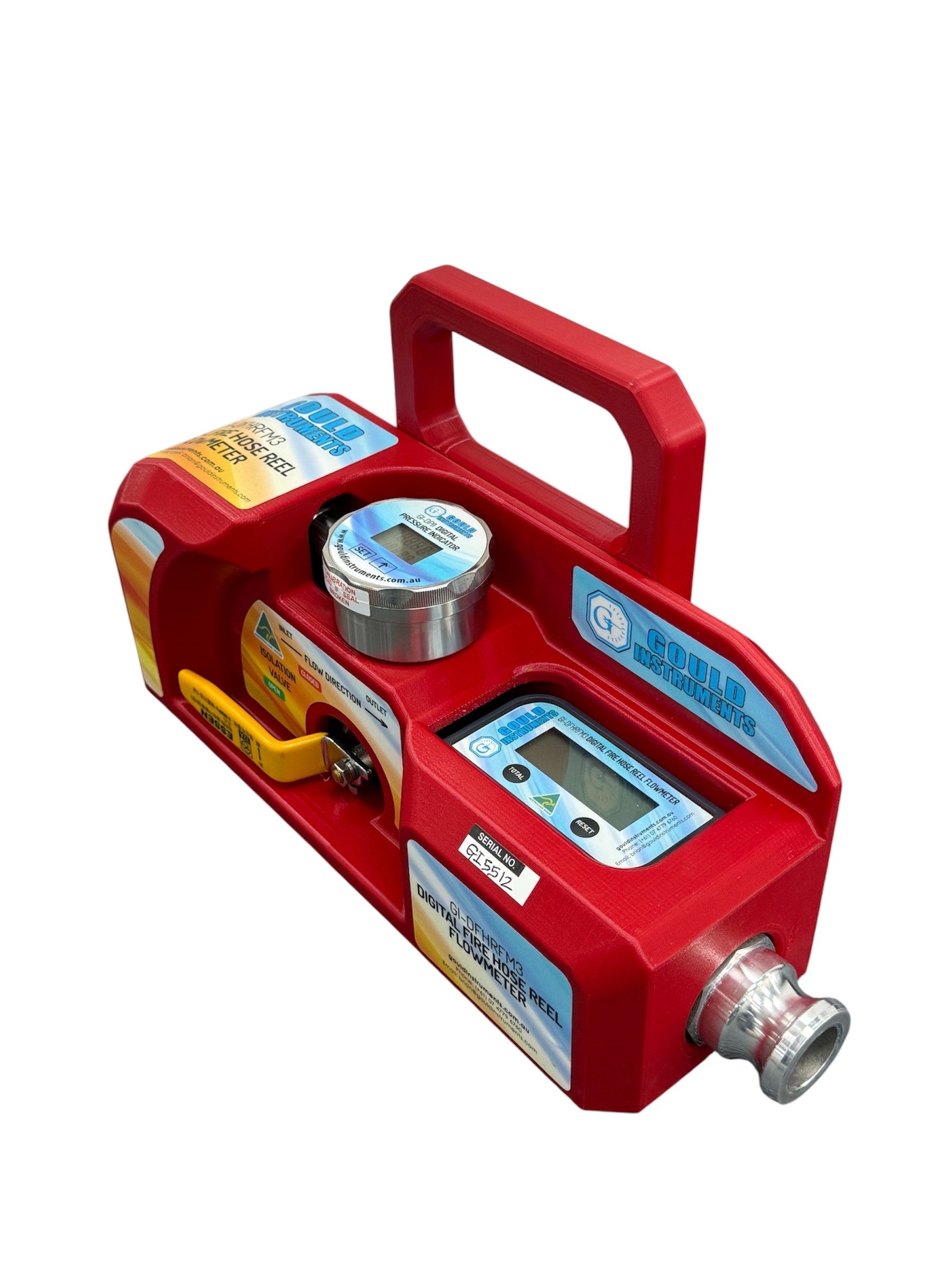

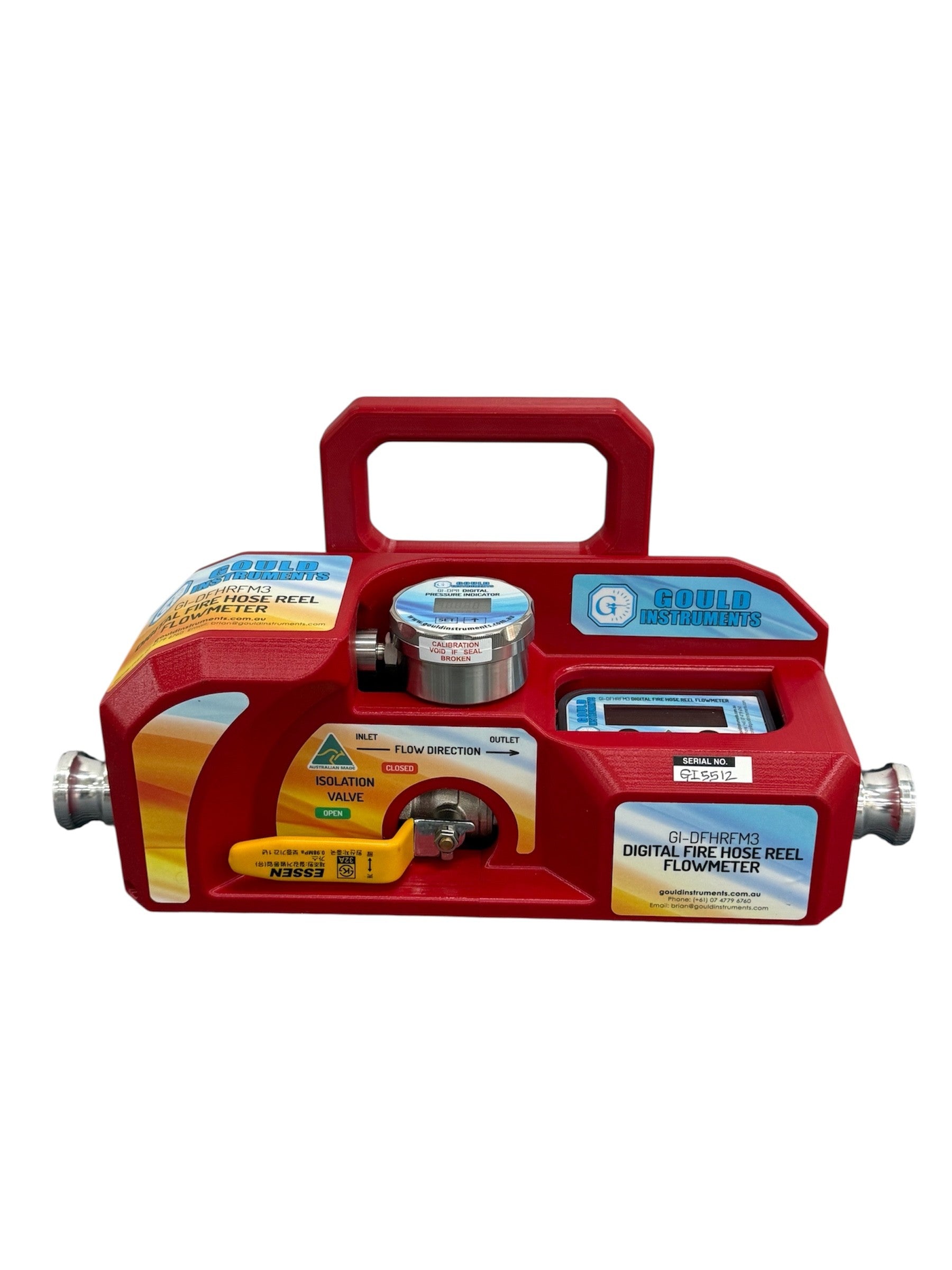

Gould Instruments Ultrasonic Fire Hose Reel Flowmeters are rugged, highly accurate, portable and simple to use

Suitable for testing all fire hose reels with the use of suitable fittings, without the need to remove fire hose reel nozzles

This model is housed in a 3D-printed enclosure with a built-in carry handle.

Description

Gould Instruments Ultrasonic Fire Hose Reel Flowmeters are rugged, highly accurate, portable and simple to use

Suitable for testing all fire hose reels with the use of suitable fittings, without the need to remove fire hose reel nozzles

This model is housed in a 3D-printed enclosure with a built-in carry handle.

Gould Instruments

Gould Digital Fire Hose Reel Flowmeter

Product Specifications

  • Model Number: GI-DFHRFM2
  • Brand: Gould Instruments
  • Range:0/1200 Litres/Minute
  • Resolution:0.1 Litres/Minute
  • Flow Totaliser:LitresAccuracy:+/- 1-2%
  • Temperature Operating Range:0/50ºC
  • Pressure Indicator Rating:0/2500 kPa
  • Construction Main Flow Body: Brass
  • Power Supply: Lithium Battery (12 month warranty)
  • Pressure Resolution:1 kPa

Contents

  • Stainless Steel Fire Hose Reel Flowmeter body with appropriate fittings
  • 2 1/2 inch ball valve
  • Digital Pressure Indicator with quick connect fittings
  • Operating Instructions
  • Calibration certificates for both flow and pressure
  • Quality impact-resistant carry case
  • Special order, non-stocked item, lead time up to 16 weeks if not in stock locally within Australia.
