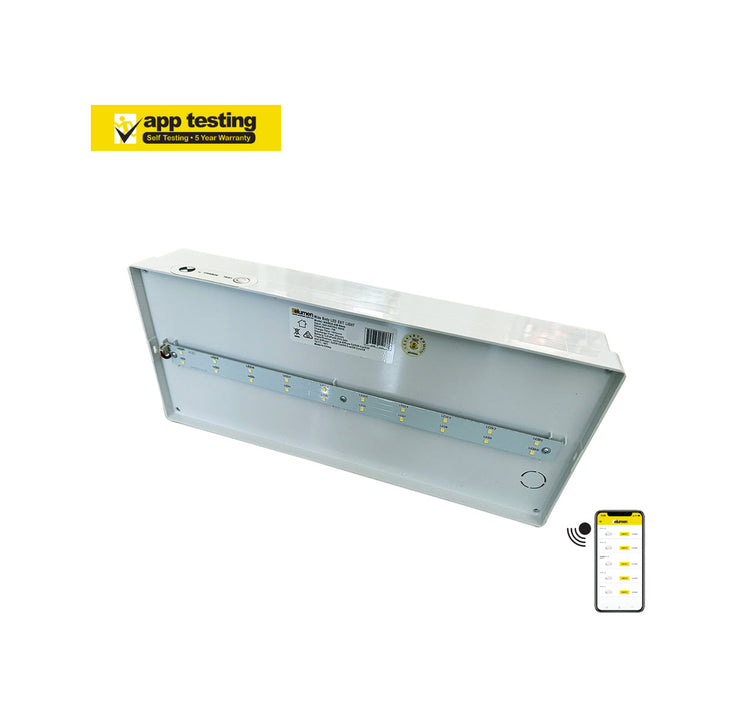

The Wanda is a traditional-style wide-body LED exit with a detachable base designed specifically for retrofitting fittings on existing sights. It is available in wall or ceiling mounts (Sold separately), depending on the defuser needed. This is our App Testing (ST) model.

Description

The Wanda is a traditional-style wide-body LED exit with a detachable base designed specifically for retrofitting fittings on existing sights. It is available in wall or ceiling mounts (Sold separately), depending on the defuser needed. This is our App Testing (ST) model.

elumen

LED Wide Body Exit - App Testing

Product Specifications

  • Model Number: WANDA-BASE-ST
  • Brand: Elumen
  • Approvals: AS 2293
  • Power Consumption: 7w
  • IP Rating: IP20
  • Viewing Distance: 24m
  • Mounting Type: Surface mounting
  • Classification (s): C0:D20, C90:D20 - Ceiling Mount, C0:D8, C90:D8 - Wall Mount
  • Construction: Poly Carbonate
  • Charger Type: Smart Charger
  • Battery Back-Up: LiFe PO4 Lithium Battery
  • Carton Quantity: 8
  • Carton Weight: 9.1kg
  • Unit Dimensions: 380mm x 160mm x 60mm
  • Carton Dimensions: 410mm x 350mm x 300mm
  • Single Unit: Yes
  • Warranty: 5 Year Warranty (includes battery)

Downloads

WANDA_ST_TDS
