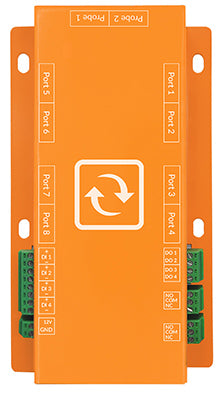

Sensorhub for Base Unit

Expansion ports for external sensor probes: 8
Dry contact input: 4
Digital output: 4 (digital sink 100mA)
Relay contact rating: 250VAC / 24VDC, 8A
Powered by and communicates with: Base Unit (BASE-XX) required;
max 1 hub per Base Unit
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF)
Humidity (operating and storage): < 90% RH (non-condensating)
Sensor enclosure: Steel enclosure, industrial grade
Mounting option: 0U rack, DIN rail, magnetic or wall mountable
Dimensions: 152.2mm (5.99”) x 96.2mm (3.79”) x 30.17mm (1.19”)
Weight: 365.2g (0.81lb)

Datasheet
